CY type Rubber Fenders
1.Low reaction force and surface pressure, reasonable rated energy absorption; 2.Strong adaptability transverse and vertical shake when the ship berths.
This item was already in your inquiry basket
Enter inquiry basket now.
- Product Details
Rubber Fenders/Rubber Buffers are usually installed on dock or ship, which could absorb collision energy during ships are landing. This will protect both ship and dock.
Normally there are two types of rubber fenders: Solid rubber fender and floating rubber fender. Solid rubber feners has been used for a long history since it is easily to be made and long time life. Solid fenders include D type rubber fender, GD type rubber fender, DA type rubber fender, CY (Cylindrical) type rubber fender, SC (Super Cell) type rubber fender, CO (Cone) type rubber fender, etc.. Floating rubber fender has a short history but because their good property, now floating fenders are widely used in ship industry. Commonly there are two type floating rubber fender: Pneumatic rubber fender and Filled rubber fender.
In China, at present the standard of solid rubber fender is < HG/T 2866-2003>. The standard of floating rubber fender is < CB-T 3948> and ISO17357:2002

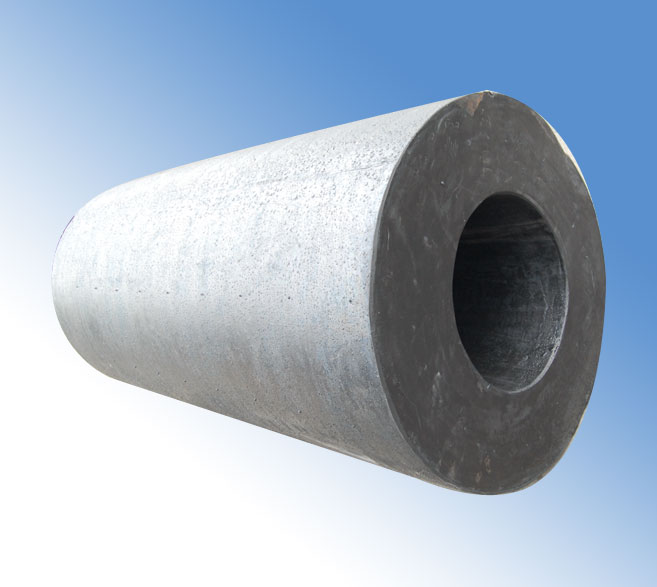

Cylindrical Rubber Fender:
1.Low reaction force and surface pressure, reasonable rated energy absorption;
2.Strong adaptability transverse and vertical shake when the ship berths.
3.Widely used ; also can be used as bump-proof device of the ship;
4.Convenient to install and maintain and especially applicable to reconstruction of old docks.
The ratio of outer diameter to inner diameter of standard cylindrical fender is 2:1
|Type||Outer Diameter（mm）||Inner Diameter（mm）||
|JCY 150||150||75||All lengths can be supplied to meet the customers’ request|
