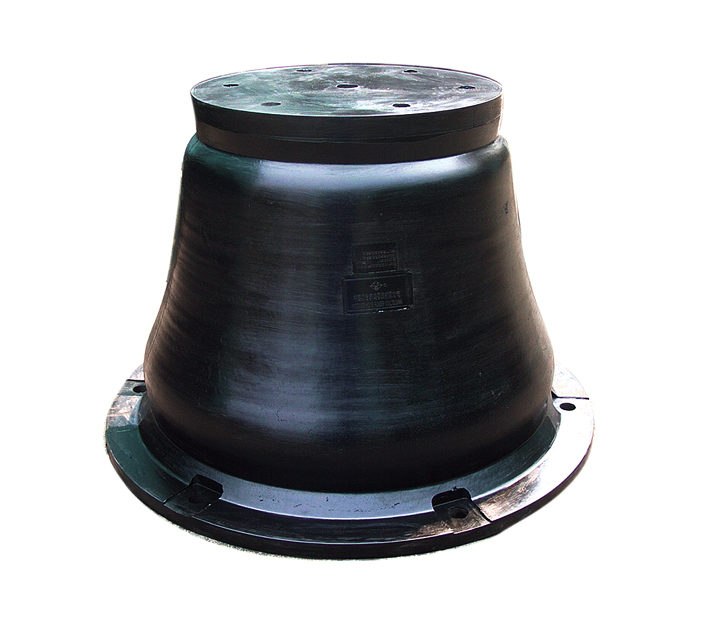

CO Type Rubber Fender
Description:
marine rubber fenders can be installed on dock or ship, which could absorb collision energy during ships are landing.
- Product Details
Rubber Fender:
Rubber Fenders/Rubber Buffers are usually installed on dock or ship, which could absorb collision energy during ships are landing. This will protect both ship and dock.
Normally there are two types of rubber fenders: Solid rubber fender and floating rubber fender. Solid rubber feners has been used for a long history since it is easily to be made and long time life. Solid fenders include D type rubber fender, GD type rubber fender, DA type rubber fender, CY (Cylindrical) type rubber fender, SC (Super Cell) type rubber fender, CO (Cone) type rubber fender, etc.. Floating rubber fender has a short history but because their good property, now floating fenders are widely used in ship industry. Commonly there are two type floating rubber fender: Pneumatic rubber fender and Filled rubber fender.
In China, at present the standard of solid rubber fender is < HG/T 2866-2003>. The standard of floating rubber fender is < CB-T 3948> and ISO17357:2002
Cone Rubber Fender （TYPE CO）
Features
1.Can endure server shear force
2.Structure is more reasonable and increased deflection, high-energy absorption and longer service life
3.It has excellent life-stability in the Marine Environment.
Specification
Rubber Fenders/Rubber Buffers are usually installed on dock or ship, which could absorb collision energy during ships are landing. This will protect both ship and dock.
Normally there are two types of rubber fenders: Solid rubber fender and floating rubber fender. Solid rubber feners has been used for a long history since it is easily to be made and long time life. Solid fenders include D type rubber fender, GD type rubber fender, DA type rubber fender, CY (Cylindrical) type rubber fender, SC (Super Cell) type rubber fender, CO (Cone) type rubber fender, etc.. Floating rubber fender has a short history but because their good property, now floating fenders are widely used in ship industry. Commonly there are two type floating rubber fender: Pneumatic rubber fender and Filled rubber fender.
In China, at present the standard of solid rubber fender is < HG/T 2866-2003>. The standard of floating rubber fender is < CB-T 3948> and ISO17357:2002
Cone Rubber Fender （TYPE CO）
Features
1.Can endure server shear force
2.Structure is more reasonable and increased deflection, high-energy absorption and longer service life
3.It has excellent life-stability in the Marine Environment.
Specification
|
Type |
specification | |||||
| H (mm) | D(mm) | U(mm) | P(mm) | S(mm) | hole | |
| CO500H | 500 | 800 | 490 | 730 | 425 | 4 |
| CO600H | 600 | 960 | 590 | 875 | 515 | 4 |
| CO800H | 800 | 1280 | 785 | 1165 | 685 | 6 |
| CO1000H | 1000 | 1600 | 980 | 1460 | 855 | 6 |
| CO1100H | 1100 | 1760 | 1080 | 1605 | 940 | 8 |
| CO1200H | 1200 | 1920 | 1175 | 1750 | 1025 | 8 |
| CO1300H | 1300 | 2080 | 1275 | 1900 | 1100 | 8 |
| CO1400H | 1400 | 2240 | 1370 | 2040 | 1195 | 8 |
| CO1600H | 1600 | 2560 | 1570 | 2335 | 1365 | 8 |
| CO1800H | 1800 | 2880 | 1765 | 2625 | 1540 | 10 |
